ZTE

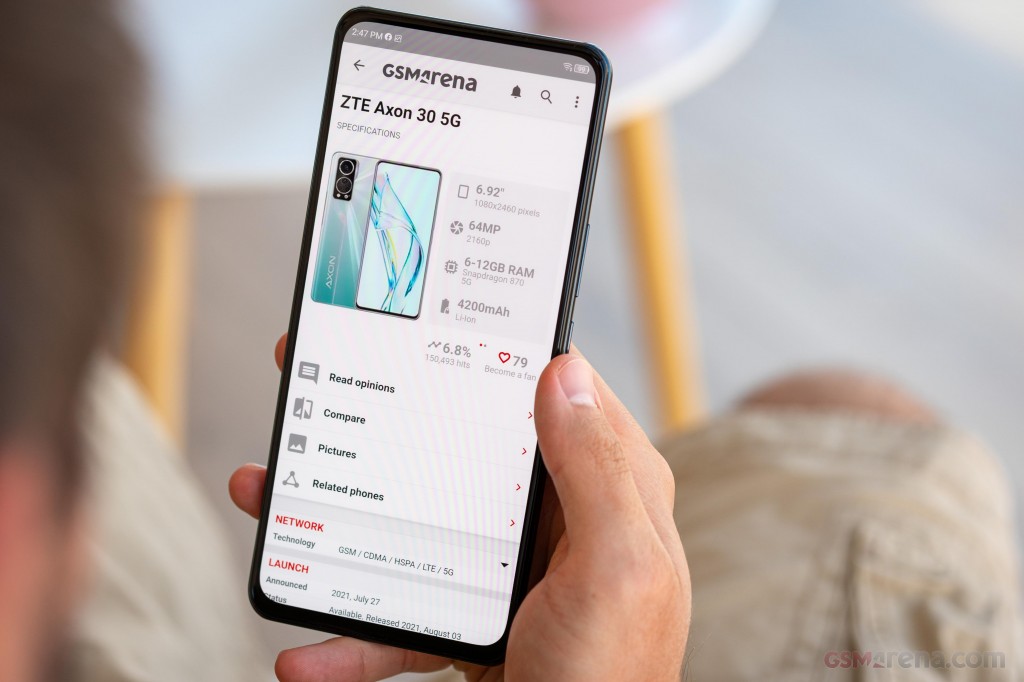

ZTE Axon 30 5G

Released 2021, July 27189 g (6.67 oz), 7.8 mmAndroid 11, MyOS 11128GB/256GB/12GB storage, no card slot

6.92"

1080 x 2460 pixels

64 MP

f/1.8

12GB RAM

Snapdragon 870 5G (7 nm)

4200mAh

65W

Launch

Announced2021, July 27

Body

dimensions170.2 x 77.8 x 7.8 mm (6.70 x 3.06 x 0.31 in)

weight189 g (6.67 oz)

buildGlass front, plastic back, plastic frame

simNano-SIM + Nano-SIM

Features

sensorsFingerprint (under display, optical), accelerometer, gyro, proximity, compass

Display

typeAMOLED, 1B colors, 120Hz

size6.92 inches, 107.0 cm2 (~80.8% screen-to-body ratio)

resolution1080 x 2460 pixels (~400 ppi density)

protectionCorning Gorilla Glass

Performance & OS

osAndroid 11, MyOS 11

chipsetQualcomm SM8250-AC Snapdragon 870 5G (7 nm)

cpuOcta-core (1x3.2 GHz Kryo 585 & 3x2.42 GHz Kryo 585 & 4x1.80 GHz Kryo 585)

gpuAdreno 650

Memory

card SlotmicroSDXC (uses shared SIM slot)

internal128GB 6GB RAM, 128GB 8GB RAM, 256GB 8GB RAM, 256GB 12GB RAM

storage TypeUFS 3.1

Main Camera

Quad camera (rear)

Video: 4K@30/60fps, 1080p@30fps, gyro-EIS, HDR, 10‑bit video

Wide

Resolution:64 MP

Aperture:f/1.8

Focal length:25mm

Pixel size:0.8µm

Sensor size:1/1.73

Autofocus:PDAF

Video:4K

Ultra Wide

Resolution:8 MP

Aperture:f/2.2

Focal length:16mm

Video:4K

Macro

Resolution:5 MP

Video:4K

Standard

Video:4K

Features

Dual-LED flash
HDR
panorama

Selfie Camera

Single camera (front)

Video: 1080p@30fps

Wide

Resolution:16 MP

Aperture:f/2.5

Video:1080p

Features

Battery

typeLi-Ion 4200 mAh

charging65W wired, PD, QC4

Sound

loudspeakerYes

jack35mmNo

Connectivity

wlanWi-Fi 802.11 a/b/g/n/ac/6, dual-band, Wi-Fi Direct

bluetooth5.1, A2DP, LE

positioningGPS, GLONASS, GALILEO, BDS

nfcYes

radioNo

usbUSB Type-C 3.0, OTG

Network

2GGSM 850 / 900 / 1800 / 1900

3GHSDPA 850 / 900 / 1700(AWS) / 1900 / 2100 - International

4G1, 2, 3, 4, 5, 7, 8, 12, 17, 20, 26, 28, 18, 19, 34, 38, 39, 40, 41 - Europe

5G1, 3, 28, 38, 41, 77, 78 SA/NSA - Europe

Additional Features

Colors

modelsA2322, A2322G

Tests

display Test438 nits max brightness (measured)

loudspeaker Test-27.7 LUFS (Good)

performanceAnTuTu: 701991 (v9) GeekBench: 3160 (v5.1) GFXBench: 59fps (ES 3.1 onscreen)
